Stainless Steel 316 Flanges

Stainless Steel 316 Flange is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

1.Manufactured in type 316 stainless steel to meet any stringent sanitary condition

2.Polished with standard "brite" finish to increase corrosion resistance and aesthetic appearance

3.No package qty. Required

Contact Now

Product Details

Stainless Steel 316 Flanges

Stainless Steel 316 Flanges are made up of a chromium nickel molybdenum alloy that is used ordinarily in chloride ion corrosion inclined environments. The molybdenum addition makes the cloth corrosion resistant, in particular to the chloride wealthy conditions. There are excessive carbon and low carbon variations of the 316 cloth which is used primarily based on the welding want and longevity of the utility intended. The 316 Stainless Steel Flanges are used in nearly all industrial purposes such as petrochemical, oil and gas, meals processing, pharmaceutical, sea water, marine, development and structural applications.

Product Parameter

Specification	Standard:ANSI B16.5 Flange Type: Welding Neck,Slip On,Blind,Lap Joint,Threaded,Socket Welding. Size Range: 1/2" to 24" Pressure Class: 150LB,300LB,400LB,600LB,900LB,1500LB,2500LB Sealing Type: Flat Face(FF),Raised FACE(RF), Ring Joint(RTJ)
Material Grades	Stainless Steel:ASTM A182-F304, F304L, F304H, F316, F316L, F321, F321H, F347H,F904L, F317, F317L 254Mo Duplex Steel:ASTM A182-F51, F53, F44 Nickel Alloy Steel: UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOYC 276 )
Forming Type	Forged
Documentation offered	Raw Material Test Report EN10204 3.1 Test Certificate Heat Treatment ChartHeat Treatment Report Quality Assurance Plan Inspection And Test Procedure Report Procedure Qualification Record
Tests and Inspections	Ultrasonic Test, Radiographic Examination, PMI Test, Penetration Test, Dimension Examination, Surface Examination, Hardness Test, Metallographic Examination,Intergranular Corrosion Test, Grain Size Test, Mechanical Property Test, Tension Test, Bending Test, Impact Test.

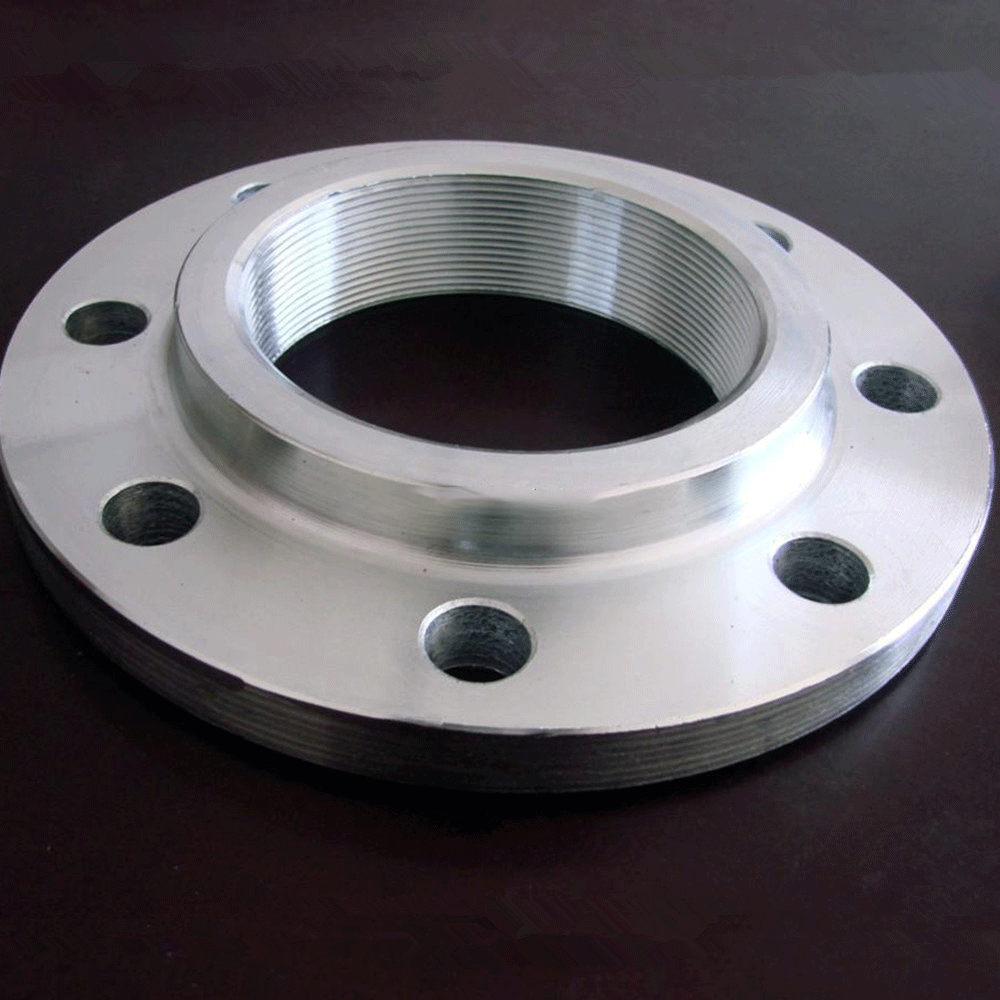

Product Display

stainless steel flange.jpg

Quality inspection

steel flange.jpg

Application

Stainless Steel 316 Flanges are used in various industrial applications. They are resistant to corrosion, as well as carbide precipitation. They are used in the connection of pipes transporting various chemical media.

stainless flange.jpg stainless steel flange.gif
